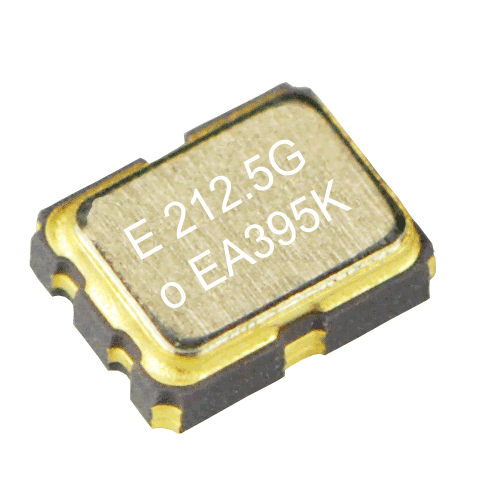

SG3225VAN 晶振是EPSON/爱普生的一款额定频率73.5 MHz to 700 MHz的石英晶体振荡器，4脚贴片，3225封装常规有源晶振，具有小尺寸，高稳定性。该款有源晶体振荡器，可以在B : -20 °C to +70 °C / G : -40 °C to +85 °C的温度内稳定工作,它广泛应用于汽车多媒体、车身电子、?？?、太空设备、防盗防灾装置、安放监控等 。作为EPSON/爱普生晶振官网推荐代理商，江苏南山电子备有现货并提供样品零售。销售价格请与江苏南山电子官网在线客服咨询。如需技术支持，请向南山电子技术部寻求选型支持。
| 产品型号 | 产品编码 | 标称频率 | 频率公差 | 购买 |
|---|---|---|---|---|
| SG3225VAN 125.000000MHz KJGA | X1G004241000100 | 125MHz | ±50 ppm |  |
| SG3225VAN 125.006250MHz KJGA | X1G004241000200 | 125.00625MHz | ±50 ppm | |
| SG3225VAN 100.000000MHz KJGA | X1G004241000400 | 100MHz | ±50 ppm | |
| SG3225VAN 200.000000MHz KJGA | X1G004241000500 | 200MHz | ±50 ppm | |
| SG3225VAN 400.000000MHz KJGA | X1G004241000600 | 400MHz | ±50 ppm | |
| SG3225VAN 106.250000MHz KJGA | X1G004241000700 | 106.25MHz | ±50 ppm | |
| SG3225VAN 212.500000MHz KJGA | X1G004241000800 | 212.5MHz | ±50 ppm | |
| SG3225VAN 74.250000MHz KJGA | X1G004241000900 | 74.25MHz | ±50 ppm | |
| SG3225VAN 148.500000MHz KJGA | X1G004241001000 | 148.5MHz | ±50 ppm | |
| SG3225VAN 75.000000MHz KJGA | X1G004241001100 | 75MHz | ±50 ppm | |
| SG3225VAN 150.000000MHz KJGA | X1G004241001200 | 150MHz | ±50 ppm | |
| SG3225VAN 156.250000MHz KJGA | X1G004241001400 | 156.25MHz | ±50 ppm | |
| SG3225VAN 312.500000MHz KJGA | X1G004241001500 | 312.5MHz | ±50 ppm | |
| SG3225VAN 312.515625MHz KJGA | X1G004241001600 | 312.515625MHz | ±50 ppm | |
| SG3225VAN 161.132800MHz KJGA | X1G004241001700 | 161.1328MHz | ±50 ppm | |
| SG3225VAN 125.000000MHz KEGA | X1G004241002000 | 125MHz | ±30 ppm | |
| SG3225VAN 125.006250MHz KEGA | X1G004241002100 | 125.00625MHz | ±30 ppm | |
| SG3225VAN 100.000000MHz KEGA | X1G004241002300 | 100MHz | ±30 ppm | |
| SG3225VAN 200.000000MHz KEGA | X1G004241002400 | 200MHz | ±30 ppm | |
| SG3225VAN 400.000000MHz KEGA | X1G004241002500 | 400MHz | ±30 ppm | |
| SG3225VAN 106.250000MHz KEGA | X1G004241002600 | 106.25MHz | ±30 ppm | |
| SG3225VAN 212.500000MHz KEGA | X1G004241002700 | 212.5MHz | ±30 ppm | |
| SG3225VAN 74.250000MHz KEGA | X1G004241002800 | 74.25MHz | ±30 ppm | |
| SG3225VAN 148.500000MHz KEGA | X1G004241002900 | 148.5MHz | ±30 ppm | |
| SG3225VAN 75.000000MHz KEGA | X1G004241003000 | 75MHz | ±30 ppm | |
| SG3225VAN 150.000000MHz KEGA | X1G004241003100 | 150MHz | ±30 ppm | |
| SG3225VAN 156.250000MHz KEGA | X1G004241003300 | 156.25MHz | ±30 ppm | |
| SG3225VAN 312.500000MHz KEGA | X1G004241003400 | 312.5MHz | ±30 ppm | |
| SG3225VAN 312.515625MHz KEGA | X1G004241003500 | 312.515625MHz | ±30 ppm | |
| SG3225VAN 161.132800MHz KEGA | X1G004241003600 | 161.1328MHz | ±30 ppm | |
